Description
"Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision. "Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision.
Parameter
· Voltage Rating：Power Contscts : 480V
Dimming Contacts : 30V
· Current Rating：Power Contscts : 15A
Dimming Contacts : 250mA
· Releated Humidity：99%
· Insulation：2500V/60Hz/1min
· 5 Position：3 power contacts , 2 dimming/signal contacts
· Cable：Power Line : UL1015 14AWG*30cm
Signal Line : UL1015 18AWG*30cm
· Accessory：Silicon Gasket

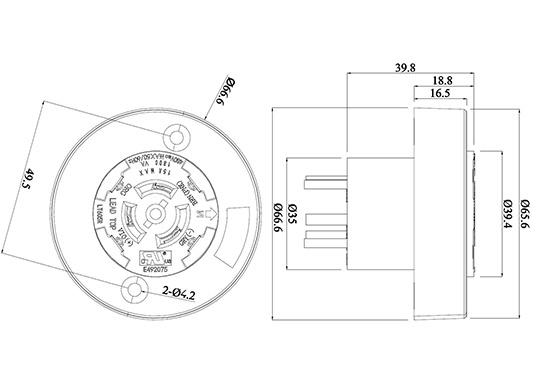

Dimension
