Description
"Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision. "Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision.
Parameter
· Rated Voltage：Power: 0-480VAC
Contact: 0-30VDC
· Rated Load：Power: 15A
Contact: 250mA
· Base：High Temperature Resistance Polybutylene Terephthalate(PBT)
· Contact Pin：Phosphor Copper with tinplating and gold plating on contact segment
· 7 Position：3 power contacts
4 dimming/signalcontacts
· Operating Temperature：-40℃ to +70℃

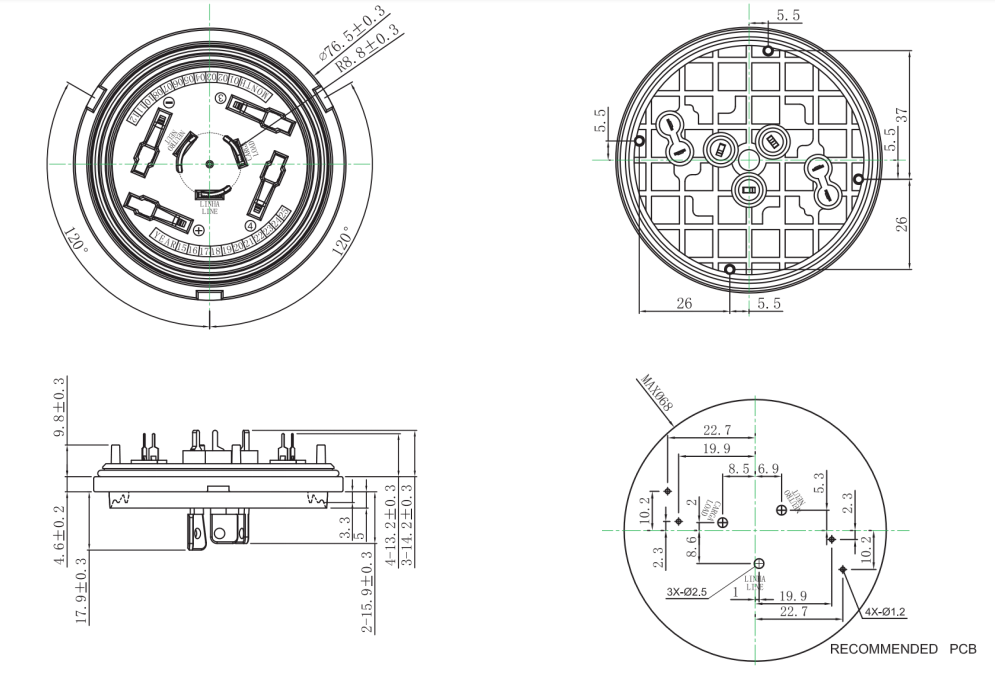

Dimension
