Description
"Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision. "Twist-Lock Photo Control" is a sophisticated and innovative device designed to enhance the functionality and efficiency of outdoor lighting systems. This advanced control mechanism allows users to manage and regulate the operation of their lighting fixtures with ease and precision.
Parameter
· Rating：1.5A, 30V
· Dielectric Withstand：10KV to mounting surface

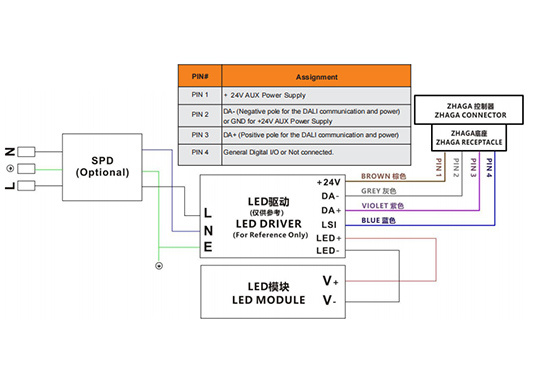

· 4PIN Contact：Pin 1: 24VDC (Brown Wire)
Pin 2: DALI - (Grey Wire)
Pin 3: DALI+ (Violet Wire)
Pin4: General I/O (Blue Wire)
· Housing Materials：High Temperature Resistance Polybutylene Terephthalate
· Gasket：Silicon Materials
· Mounting Ring：Aluminm Materials
· Wire：UL1015 18AWG*16cm

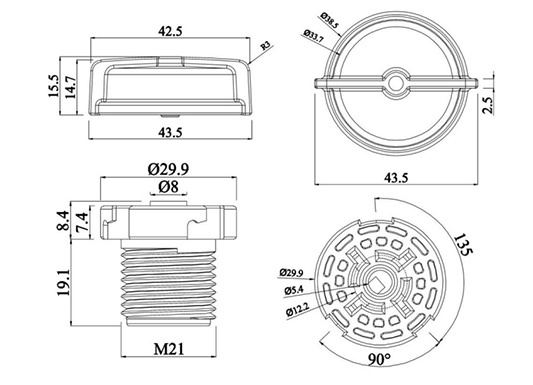

Dimension
